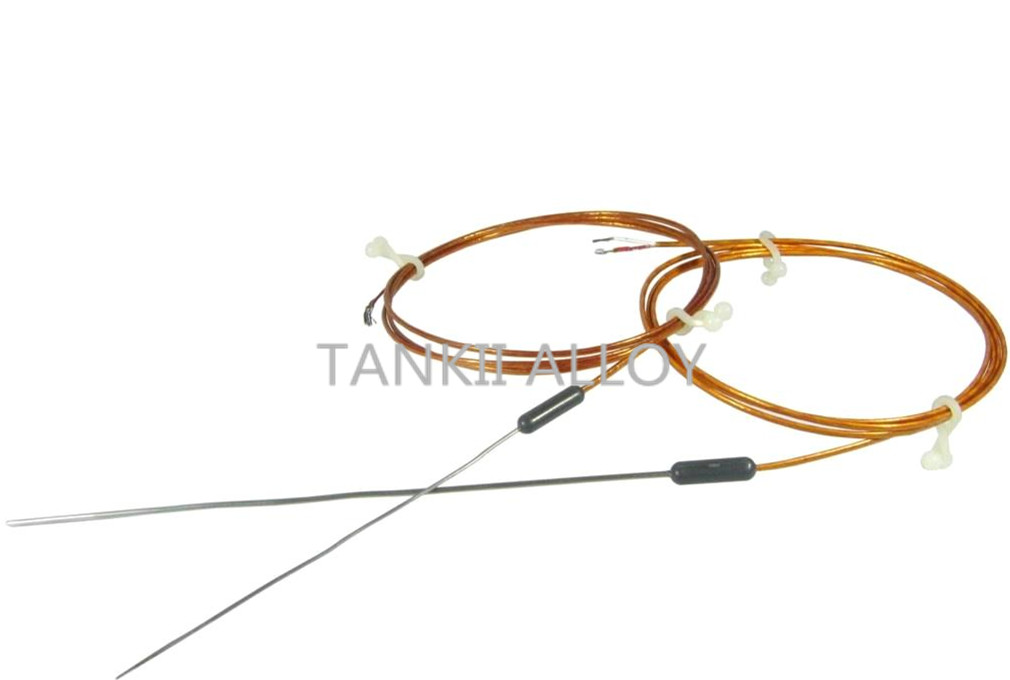

PTFE Insulated And Jacked Thermocouple Cable Type k j e r t Used
For Thermocouple Sensor
Quick Details
The thermocouple compensation cables can also be termed as
instrumentation cables, since they are used for process temperature
measurement. The construction is similar to pair instrumentation
cable but the conductor material is different. Thermocouples are
used in processes to sense temperature and is connected to the
pyrometers for indication and control. The thermocouple and
pyrometer are electrically conducted by thermocouple extension
cables / thermocouple compensating cables. The conductors used for
these thermocouple cables are required to have similar
thermo-electric (emf) properties as that of the thermocouple used
for sensing the temperature.
Our plant mainly manufacture type KX,NX,EX,JX,NC,TX,SC/RC,KCA,KCB
compensating wire for thermocouple, and they are used in
temperature measurement instruments and cables. Our thermocouple
compensating products are all made abiding by GB/T 4990-2010 ‘Alloy
wires of extension and compensating cables for thermocouples’
(Chinese National Standard), and also IEC584-3 ‘Thermocouple part
3-compensating wire’ (International standard).
The representing of the comp. wire: thermocouple code+C/X , e.g.
SC, KX
1. X: Short for extension, means that the compensation wire's alloy
is as the same as the the alloy of the thermocouple
2. C: Short for compensation, means that the compensation wire's
alloy has similar characters with the thermocouple's alloy in a
certain temperature range.
Application area
1. Heating – Gas burners for ovens
2. Cooling – Freezers
3. Engine protection – Temperatures and surface temperatures
4. High temperature control – Iron casting
Detailed Description
| Thermocouple Code | Comp. Type | Comp. Wire Name | Positive | Negative |
| Name | Code | Name | Code |
| S | SC | copper-constantan 0.6 | copper | SPC | constantan 0.6 | SNC |
| R | RC | copper-constantan 0.6 | copper | RPC | constantan 0.6 | RNC |
| K | KCA | Iron-constantan22 | Iron | KPCA | constantan22 | KNCA |
| K | KCB | copper-constantan 40 | copper | KPCB | constantan 40 | KNCB |
| K | KX | Chromel10-NiSi3 | Chromel10 | KPX | NiSi3 | KNX |
| N | NC | Iron-constantan 18 | Iron | NPC | constantan 18 | NNC |
| N | NX | NiCr14Si-NiSi4Mg | NiCr14Si | NPX | NiSi4Mg | NNX |
| E | EX | NiCr10-Constantan45 | NiCr10 | EPX | Constantan45 | ENX |
| J | JX | Iron-constantan 45 | Iron | JPX | constantan 45 | JNX |
| T | TX | copper-constantan 45 | copper | TPX | constantan 45 | TNX |
|
| The color of Insulation and Sheath |
| Type | Insulation Color | Sheath Color |
| Positive | Negative | G | H |
| / | S | / | S |
| SC/RC | RED | GREEN | BLACK | GRAY | BLACK | YELLOW |
| KCA | RED | BLUE | BLACK | GRAY | BLACK | YELLOW |
| KCB | RED | BLUE | BLACK | GRAY | BLACK | YELLOW |
| KX | RED | BLACK | BLACK | GRAY | BLACK | YELLOW |
| NC | RED | GRAY | BLACK | GRAY | BLACK | YELLOW |
| NX | RED | GRAY | BLACK | GRAY | BLACK | YELLOW |
| EX | RED | BROWN | BLACK | GRAY | BLACK | YELLOW |
| JX | RED | PURPLE | BLACK | GRAY | BLACK | YELLOW |
| TX | RED | WHITE | BLACK | GRAY | BLACK | YELLOW |
| Note: G--For general use H--For heat resistant use S--Precision
class Normal class has no sign |
Packaging & Delivery
| Packaging Details | Roll with plastic film wrapped and carton package |
|---|
| Delivery Detail | Shipped in 7 days after payment |
|---|
Application:
