0.6*85mm 0cr15al5 Heating Resistance Ribbon
for Braking
Resistor
FeCrAl resistance electrothermal alloy has high resistivity, good surface
oxidation resistance , and high strength at high temperature, good
processing performance and weldability , can be widely used in gold
, household appliances , machinery manufacturing industry as
heating elements and electrical industry as resistance materials.
Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy
|
Properties Grade
| 1Cr13Al4
| 0Cr25Al5
| 0Cr21Al6
| 0Cr23Al5
| 0Cr21Al4
| 0Cr21Al6Nb
| 0Cr27Al7Mo2
|
Main Chemical Composition
(%)
| Cr
| 12.0-15.0
| 23.0-26.0
| 19.0-22.0
| 22.5-24.5
| 18.0-21.0
| 21.0-23.0
| 26.5-27.8
|
Al
| 4.0-6.0
| 4.5-6.5
| 5.0-7.0
| 4.2-5.0
| 3.0-4.2
| 5.0-7.0
| 6.0-7.0
|
Re
| opportune
| opportune
| opportune
| opportune
| opportune
| opportune
| opportune
|
Fe
| Bal.
| Bal.
| Bal.
| Bal.
| Bal.
| Bal.
| Bal.
|
|
|
|
|
|
| Nb0.5
| Mo1.8-2.2
|
Max Continuous Service Temperature(oC)
| 950
| 1250
| 1250
| 1250
| 1100
| 1350
| 1400
|
Resisivity 20oC (Ωmm2/m)
| 1.25
±0.08
| 1.42
±0.06
| 1.42
±0.07
| 1.35
±0.07
| 1.23
±0.07
| 1.45
±0.07
| 1.53
±0.07
|
Density(g/cm3)
| 7.4
| 7.1
| 7.16
| 7.25
| 7.35
| 7.1
| 7.1
|
Thermal Conductivity
| 52.7
| 46.1
| 63.2
| 60.2
| 46.9
| 46.1
| 45.2
|
(KJ/m@h@oC)
|
Coefficient of Thermal Expansion(α×10-6/oC)
| 15.4
| 16
| 14.7
| 15
| 13.5
| 16
| 16
|
Approximate Melting Point( oC)
| 1450
| 1500
| 1500
| 1500
| 1500
| 1510
| 1520
|
Tensile Strength(N/mm2)
| 580-680
| 630-780
| 630-780
| 630-780
| 600-700
| 650-800
| 680-830
|
Elongation(%)
| >16
| >12
| >12
| >12
| >12
| >12
| >10
|
Section Variation
| 65-75
| 60-75
| 65-75
| 65-75
| 65-75
| 65-75
| 65-75
|
Shrink Rate (%)
|
Repeatedly Bend Frequency(F/R)
| >5
| >5
| >5
| >5
| >5
| >5
| >5
|
Hardness (H.B.)
| 200-260
| 200-260
| 200-260
| 200-260
| 200-260
| 200-260
| 200-260
|
Continuous Service Time
| no
| ≥80/1300
| ≥80/1300
| ≥80/1300
| ≥80/1250
| ≥50/1350
| ≥50/1350
|
Micrographic Structure
| Ferrite
| Ferrite
| Ferrite
| Ferrite
| Ferrite
| Ferrite
| Ferrite
|
Magnetic Property
| Magnetic
| Magnetic
| Magnetic
| Magnetic
| Magnetic
| Magnetic
| Magnetic |
As regards this electric heating alloy, we can suppply various
wires, bars, plates, strips, rods, etc.
Description
With the characteristics of high resistance, low coefficient of
electric resistance, high operating temperature, good corrosion
resistance under high temperature. It is mainly used in electric
ceramic cooktop, industrial furnace.
Usage
It is mainly used in electric locomotive, diesel locomotive, metro
vehicle and high speed moving car etc brake system brake resistor,
electric ceramic cooktop, industrial furnace.
Features
Stable performance; Anti-oxidation; Corrosion resistance; High
temperature stability; Excellent coil-forming ability; Uniform and
beautiful surface condition without spots.
Packing detail
1) Coil (plastic spool) + compressed ply-wooden case + pallet
2) Coil (plastic spool) + carton + pallet
Products and services:
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery;
3. Details of tankii strips
Bright Surface Fecral Alloy Heating Strip 1Cr13Al4 1.0*385mm
Exstock 100kg
Application:

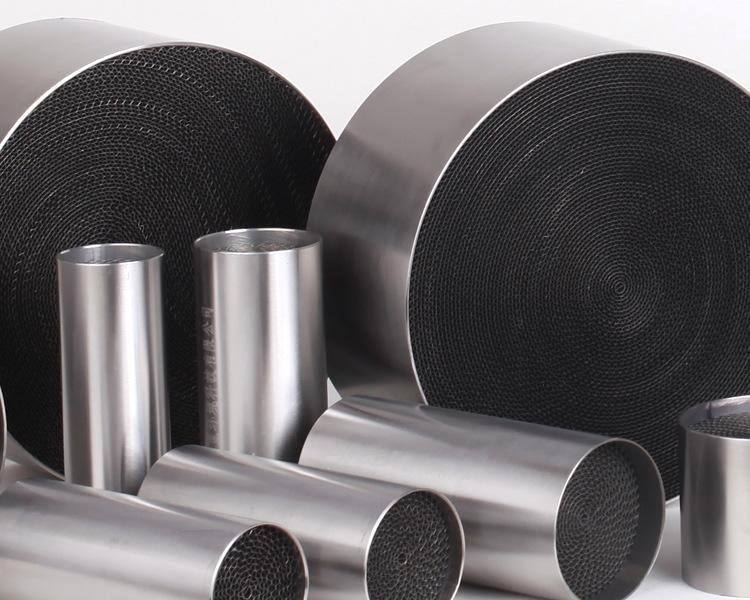

Honeycomb carrier
4. Why choose us
Shanghai Tankii Alloy Material Co., Ltd. specialized in production
of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium
Aluminum Alloy, Nickel Aluminum Alloy, Magnin, Copper Nickel Alloy,
thermocouple wire, pure nickel and other precision alloy materials
in the form of round wire, ribbon wire, sheet, tape, strip, rod and
plate.
Our products, such us nichrome wire, nichrome strip, fecral wire,
fecral strip, thermocouple wire, nickel wire, nickel strip have
been exported to Europe, USA, India, Southest Asia, South
America,etc.
Welcome to call me or email to me for more info on resistohm
strips, 1Cr13Al4 strip with good price.
1. Good Quality
2. Fast shipment
3. Small MOQ
4. Big Width for 1Cr13Al4 strip
5. Good reputation in the international market
Rohs Certified Fecral Alloy Resistance Strip 1Cr13Al4 1.0*250mm
Exstock With Low Price
