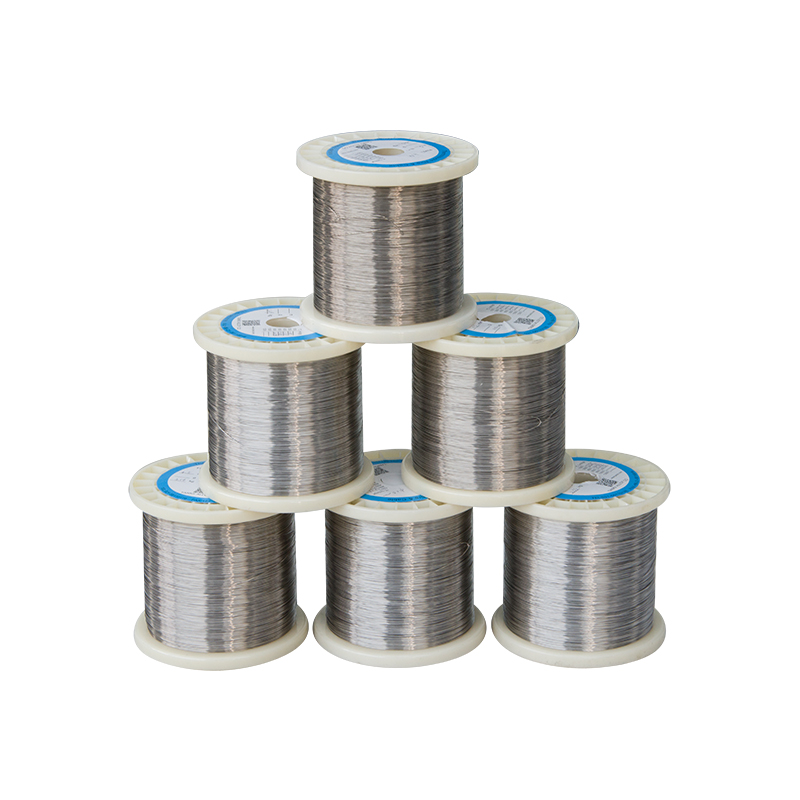

    Kan-Thal D FeCrAl 135 Electrical High Temperature Heater Wire For Chemical

    Ask Lasest Price
    Brand Name : TANKII
    Model Number : TANKII D
    Certification : ISO9001 SGS
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 Tons per month
    Delivery Time : 7-20 days
    • Product Details
    • Company Profile

    Kan-Thal D FeCrAl 135 Electrical High Temperature Heater Wire For Chemical

    FeCrAl alloy has the characteristic of high resistivity, low temperature resistance coefficient, high operating temperature, good anti-oxidation and anti-corrosion under high temperature.

    It is widely used in industrial furnace, household appliances, metallurgy, machinery, aircraft, automotive, military and other industries producing heating elements and resistance elements.


    Size details

    Product nameSize range
    Cold drawing wireDiameter 0.03-7.5mm
    Hot-rolled wire rodDiameter 8.0-12mm
    RibbonThickness 0.05-0.35mm
    Width 0.5.0-3.5mm
    Cold rolled stripThickness 0.5-2.5mm
    Width 5.0-40mm
    hot rolled stripThickness 4-6mm
    Width 15-40mm

    basic parameters:

    basic parametersAPMTMFeCrAl
    A-1AFD
    The highestcontinuous working temperature1425140013001300
    The nominal chemical composition,% Cr22222222
    AI5.85.85.34.8
    Feingredientsingredientsingredientsingredients
    Ni----
    The resistivity in 20ºC,Ωmm-2mm-11.451.451.391.35
    density,g/cm37.17.17.157.25
    Thermal expansion coefficientK-1 20-750ºC14×10-614×10-614×10-614×10-6
    20-1000ºC15×10-615×10-615×10-615×10-6
    The thermal conductivity 20ºC,Wm-1K-113131313
    Specific heat capacity 20ºC,KJkg-1K-10.460.460.460.46
    Melting pointºC1500150015001500
    Probably mechanical characteristics
    Tensile strength,N mm-2680680680650
    The yield strength,N mm-2470475475450
    Hardness,Hv230230230230
    Breaking elongation,%20181818
    900ºCTensile strength,N mm-240343734
    Creep strength 800ºC11686
    1000ºC3.411.51
    Magneticmagnetic(In the temperature600ºC)
    Emissivity, the oxidation conditions0.70.70.70.7
