    Cold Rolled Super Wide Pure Nickel Foil Polished For Aviation / Ocean Industry

    Ask Lasest Price
    Brand Name : TANKII
    Model Number : Pure Ni
    Certification : ISO,ROHS
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10,000/Month
    • Product Details
    • Company Profile

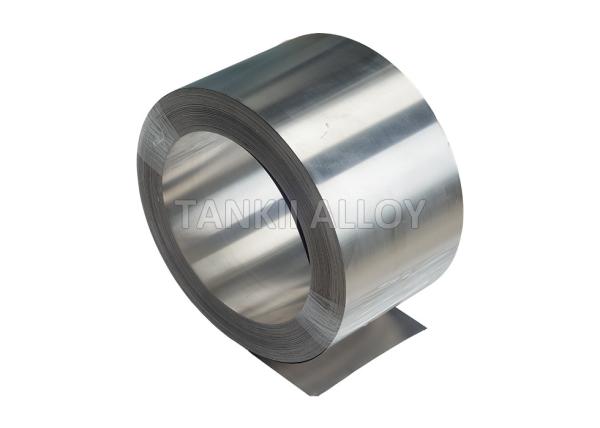

    Cold Rolled Super Wide Pure Nickel Foil Polished For Aviation / Ocean Industry

    Cold Rolled Ni200 / Foil Ni: 99.5% Pure Strip for Nickel Battery


    Product Description

    Pure Nickel Strip is primarily used for chemical treatment, preservation and production of synthetic fiber materials. The Pure Nickel strip can be operated up to 600̊F. It has outstanding magnetic properties and thermal and electrical conductivity.


    Specification of Pure Nickel Strip:

    Strip Size

    Thickness – 0.005mm above, Width- 0.2mm above


    Chemical Composition of Pure Nickel Strip:

    Nickel

    99.6%

    Copper

    0.25%

    Iron

    0.40%

    Manganese

    0.35%

    Carbon

    0.15%

    Silicon

    0.35%

    Sulfur

    0.01%


    Physical properties of Pure Nickel Strip:

    Density, g/cm3

    8.89

    Melting Range, °C

    1435-1446

    Specific Heat, J/kg•°C

    456

    Curie Temperature, °C

    360


    Nickel Strip Product Precision


    Thickness

    Thickness allowance

    Burr height

    Width scope and tolerance

    2≤w<10

    10≤w<50

    50≤w<100

    100≤w<150

    150≤w<200

    200≤w

    0.02≤t<0.05

    ±0.003

    0.005

    ±
    0.05

    ±0.10

    ±0.15

    ±0.20

    ±0.30

    ±0.50

    0.05≤t<0.1

    ±0.005

    0.01

    0.1≤t<0.2

    ±0.008

    0.015

    0.2≤t<0.3

    ±0.012

    0.02

    0.3≤t<0.4

    ±0.015

    0.03

    ±
    0.10

    ±0.15

    ±0.25

    ±0.50

    ±0.80

    ±1.00

    0.4≤t<0.6

    ±0.025

    0.05

    0.6≤t<0.8

    ±0.030

    0.06

    ±
    0.30

    ±0.40

    ±0.50

    ±0.50

    ±0.80

    ±1.00

    0.8≤t<1.0

    ±0.040

    1.0≤t<1.2

    ±0.050

    0.08

    ±
    0.50

    ±0.50

    ±0.80

    ±1.00

    ±1.00

    ±1.50

    1.2≤t<1.4

    ±0.060

    1.4≤t<1.7

    ±0.070

    0.10

    1.7≤t<2.0

    ±0.080


    Properties of Pure Nickel Strip:

    1. Higher electrical conductance
    2. Raised Curie Temperature
    3. Superior Magnetostrictive Properties
    4. Excellent thermal conductivity

    Applications of Nickel 200 Strip:

    1. Manufacturing artificial synthetic fibers.
    2. Chemical Treatment and Preservation.
    3. Aerospace Industry.
    4. Cathode tap
    5. Cell connector
