    High Temperature Thermocouple Bare Wire 0.1~12mm Type T Type E Type K Type J

    Ask Lasest Price
    Brand Name : Tankii
    Model Number : K
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Paypal, Western Union, MoneyGram,
    Supply Ability : 1000Ton per year
    Delivery Time : 5-7 days after getting the payment
    • Product Details
    • Company Profile

    High Temperature Thermocouple Bare Wire 0.1~12mm Type T Type E Type K Type J

    Bare Thermocouple Wire 0.1~12mm Type T Type E Type K Type J High Temperature Thermocouple Wire


    Thermocouple wire allows temperatures to be measured electronically. A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.


    Special application of Tankii thermocouple wire:
    1. Mineral Insulated Thermocouples
    2. Plastics/Packaging Industry T/C's & RTD's
    3. Industrial Thermocouples
    4. Food, Dairy & Pharmaceutical Probes


    Bare Thermocouple Wire 0.1~12mm Type T Type E Type K Type J High Temperature Thermocouple Wire


    Shanghai Tankii Thermocouple wire's Characteristics:
    The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

    Tankii products conform to the standards of IEC584 -1 and 2.

    Tankii Thermocouple strips, thermocouple connectors are available.
    Tankii thermocouple grade extension wire can be supplied as per your request.
    Tankii KX, JX, TX KC, RC,EX wire with class 1 and 2 are available.
    Bare Thermocouple Wire 0.1~12mm Type T Type E Type K Type J High Temperature Thermocouple Wire
    More parameters of Tankii thermocouple wires:
    Tankii Thermocouple Type and Temperature Range

    Thermocouple type and index

    Measurement Range

    Type

    Index


    PtRh30-PtRh6

    B600~1700


    PtRh13-Pt

    R0~1600


    PtRh10-Pt

    S0~1600


    NiCr-NiSi

    K-200~1300


    NiCr-CuNi (constantan)

    E-200~900


    Fe-CuNi (constantan)

    J-40~750


    Cu-CuNi (constantan)

    T-200~350


    NiCrSi-NiSi

    N-200~1300

    Bare Thermocouple Wire 0.1~12mm Type T Type E Type K Type J High Temperature Thermocouple Wire


    The allowable grade and Tolerance are obtained at 0℃

    Thermocouple
    Type

    Grade

    Temperature range

    Allowable Tolerance /℃
    Type B600~1700±0.25% t
    600~800±4
    800~1700±0.5%t
    Type R(S)0~1100±1
    1100~1600±[1+(t-1100) ×0.3%]
    0~600±1.5
    600~1600±0.25% t
    Type K and Type N-40~1100±1.5℃ or ±0.4%t
    -40~1300±2.5℃ or ±0.75%t
    -200~40±2.5℃ or ±1.5%t
    Type E-40~1100±1.5℃ or ±0.4%t
    -40~1300±2.5℃ or ±0.75%t
    -200~40±2.5℃ or ±1.5%t
    Type J-40~750±1.5℃ or ±0.4%t
    -40~750±2.5℃ or ±0.75%t
    Type T-40~350±0.5℃ or ±0.4%t
    -40~350±1.0℃ or ±0.75%t
    -200~40±1.0℃ or ±1.5%t

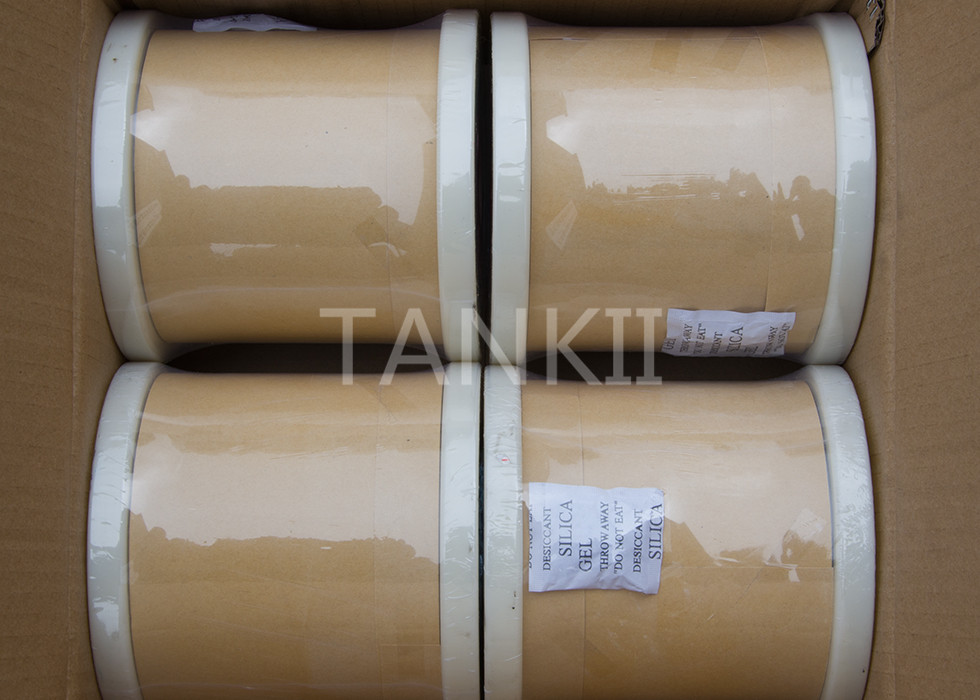

    Product packing details:

    Bare Thermocouple Wire 0.1~12mm Type T Type E Type K Type J High Temperature Thermocouple Wire
    Delivery and Packing of thermocouple wire:
    1. Packaging Details : DIN spools with plastic film wrapped and carton package.
    2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.
    3. Delivery: By express, air, sea as per thermocouple wire qty
    Bare Thermocouple Wire 0.1~12mm Type T Type E Type K Type J High Temperature Thermocouple Wire
    Welcome to call me or email to me for more information on K type thermocouple wire, Thermocouple stranded wire , thermocouple flat wire, thermocouple strip.
