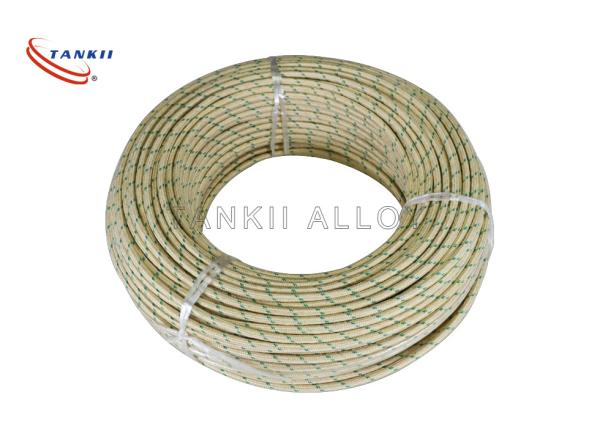

    Braided 500V Fiberglass Insulated Cable With Mica Tape

    Ask Lasest Price
    Brand Name : Tankii
    Model Number : 0.5~95mm2
    Certification : Rohs, SGS
    Price : Negotiation
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 1000Ton per year
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Braided 500V Fiberglass Insulated Cable With Mica Tape

    Blue Yarn High Temperature Fiberglass Braided With Mica Tape
    Product type: Refractory cable
    Performance standard: Q/IRMV5-2009
    Product features:
    1 Rated voltage:300/500V
    2 Working temperature:-60~+500 deg C
    3 Conductor: pure nickel wire / nickel plated copper wire / silver plated copper wire
    4 Insulation material: glass fiber braided + mica
    5 colors: red/yellow/blue/white/black/green/brown/orange/purple/olivine yarn
    Blue yarn High Temperature Fiberglass Braided With Mica Tape
    Features & applications:
    1. Fire resistance, low smoke, in case of fire, the cable insulation remains intact
    2. Fixed laying plus flame burning, no harmful and poisonous gas released .
    3. This product is used in various electrical devices which need fireproof performance in special environment such as metallurgical, thermal, petrochemical, natural gas, kerosene, etc

    Available Sizes:



    Nominal section area
    (mm2)
    Conductor
    Strands/dia(mm)
    Insulation thikness
    (mm)
    OD
    (mm)
    Pack length
    (m)
    0.5
    7 × 0.30
    0.5
    2.3 ± 0.3
    200
    0.75
    11 × 0.30
    0.5
    2.5 ± 0.3
    200
    1
    14 × 0.30
    0.5
    2.6 ± 0.3
    200
    1.2
    40 × 0.19
    0.5
    2.7 ± 0.3
    100
    1.5
    21 × 0.30
    0.5
    2.9 ± 0.3
    100
    2
    28 × 0.30
    0.6
    3.3 ± 0.5
    100
    2.5
    35 × 0.30
    0.6
    3.6 ± 0.5
    100
    4
    56 × 0.30
    0.8
    4.7 ± 0.5
    100
    6
    84 × 0.30
    0.8
    5.5 ± 0.5
    100
    10
    84 × 0.40
    0.8
    6.6 ± 0.5
    100
    16
    228 × 0.30
    0.8
    7.8 ± 0.5
    100
    126 × 0.40
    0.8
    7.8 ± 0.5
    100
    25
    196 × 0.40
    0.8
    9.5 ± 0.5
    100
    361 × 0.30
    0.8
    9.5 ± 0.5
    100
    35
    494 × 0.30
    1.0
    11.2 ± 1.0
    100
    50
    396 × 0.40
    1.2
    13.2 ± 1.0
    100
    703 × 0.30
    1.2
    13.2 ± 1.0
    100
    70
    551 × 0.40
    1.2
    15.4 ± 1.0
    100
    988 × 0.30
    1.2
    15.4 ± 1.0
    100
    95
    760 × 0.40
    1.2
    17.4 ± 1.0
    100
    Remark: Other sizes are available as per customer's reqeust




    Packaging & Delivery
    Packaging DetailsRoll with plastic film wrapped and carton package
    Delivery DetailShipped in 7 days after payment

    FAQ:
    1. Payment ways?
    T/T, PAYPAL, WESTUNION.
    2. When will you arrange the production?
    In 12 hours since we get your payment.
    3. Product certifications?
    MTC , ISO9001, ROHS , SGS as customers' request
    4. What kind of informations shall I give you regarding the shipping?
    Company name, Recipients, Correct Address, telephone, zip code.
    5. What is your warranty ?
    For most of our products, the warranty will be 12 months.
    6. When will I get a solution for defective products?
    Within 48 hours (on working days )
    7. What is your shipping way?
    DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!
    8. What is your shipping time?
    For General Orders, the shipping time will be 7 workdays.
    Welcome to call me or email to me for more info on refractory cable.
