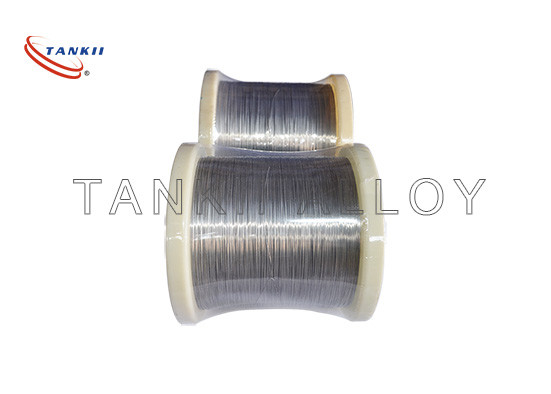

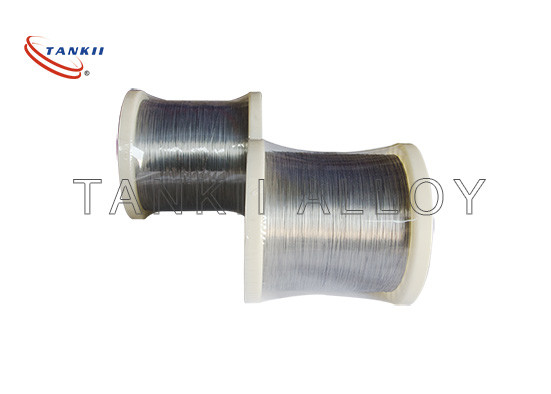

    Superfine 0.1mm Type K Thermocouple Wire Oxidized

    Ask Lasest Price
    Brand Name : TANKII
    Model Number : type K
    Certification : ISO9001
    Price : usd+65+kg
    Payment Terms : L/C, T/T, Western Union,paypal
    Supply Ability : 200+ton+month
    Delivery Time : 8-20 days
    • Product Details
    • Company Profile

    Superfine 0.1mm Type K Thermocouple Wire Oxidized

    Product Description
    Type K Thermocouple wire superfine wire 0.05mm 0.1mm

    NiCr-NiSi (Type K) thermocouple finds the widest use in all basemetal thermocouple, at temperature above 500 °C.

    Type K thermocouple has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:

    (1) Alternatively oxidizing and reducing atmosphere.
    (2) Atmosphere with sulphur gases.
    (3) Long time in vacuum.
    (4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.

    Detailed Parameter

    Chemical Composition

    Conductor Name

    Polarity

    Code

    Nominal Chemical Composition /%

    Ni

    Cr

    Si

    Ni-Cr

    Positive

    KP

    90

    10

    --

    Ni- Si

    Negative

    KN

    97

    --

    3
    Working Temperature

    Diameter/mm

    Long time Working temperature /ºC

    Short period Working temperature /ºC

    0.3

    700

    800

    0.5

    800

    900

    0.8,1.0

    900

    1000

    1.2,1.6

    1000

    1100

    2.0,2.5

    1100

    1200

    3.2

    1200

    1300
    Application:
    Heating - Gas burners for ovens
    Cooling - Freezers
    Engine protection - Temperatures and surface temperatures
    High temperature control - Iron casting
