    pure Nickel 270 Strip (UNS N02270)

    Ask Lasest Price
    Brand Name : TANKII
    Model Number : UNS N02270)
    • Product Details
    • Company Profile

    pure Nickel 270 Strip (UNS N02270)

    Product Description

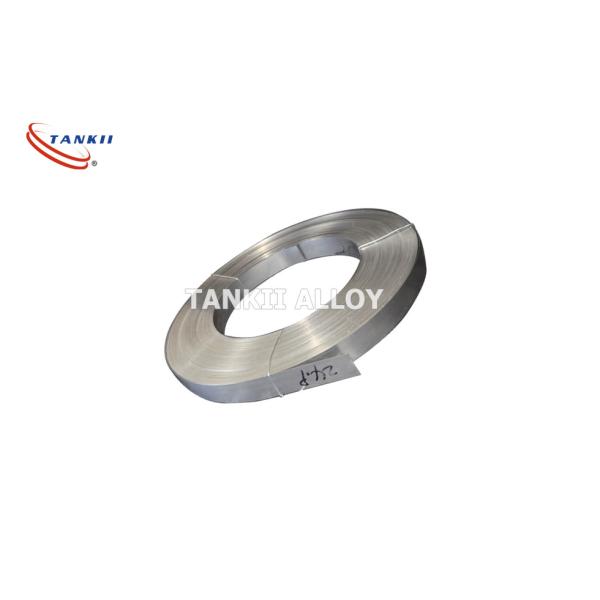

    Nickel 270 Strip

    1.Description
    Pure nickel 270 stripare made by advanced vacuum melting process.and by forging,rolling,annealing
    and drawing. Good mechanical properties corrosion resistance pure nickel 270 strip is used in electric
    apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.


    Nickel 270 alloy is a high purity nickel alloy that has high ductility and low base hardness. It is made by powder metallurgy. It contains 99.95% nickel in addition to traces of minor elements.

    1). Chemical composition(%)

    Nickel min 99.9%

    2). Physical properties


    Grade

    Density (g/cm3)

    Melting Range
    (ºC)

    Curie point
    (ºC)

    Volume resistivity (μΩ.cm)

    Thermal conductivity (W/m. ºC)

    Nickel 270

    8.89

    1435-1446

    360

    79.3(20ºC)


    3). Mechnical properties


    FORM


    Yield Strength (Mpa)


    Tensile Strength (Mpa)


    Elongation (%)


    Hardness (RB)


    Bar

    Hot-finished

    105-310

    60-85

    55-35

    45-80

    Cold-drawn,annealed

    105-210

    55-75

    55-40

    75-98


    Strip

    Hard

    480-795

    620-895

    15-2

    >90

    Annealed

    105-210

    380-580

    55-40

    <70


    Wire

    Annealed

    105-345

    380-580

    50-30

    No.1 Temper

    275-520

    485-655

    40-20

    Spring Temper

    725-930

    860-1000

    15-2

    2.Specification
    Strip:Thickness: 0.02mm to 3.0mm ,Width: 1.0mm to 1000mm
    Sheet/Coil:Thickness:0.002-0.125mm

    3.Usage
    Good mechanical properties corrosion resistance pure nickel 270 strip is used in electric apparatus,lead for lamp
    and chemical machinery.Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.

    4.Features
    Good mechanical properties corrosion resistance pure nickel 270 strip has Stable performance;Anti-oxidation;
    Corrosion resistance;High temperature stability;Excellent coil-forming ability;Uniform and beautiful surface
    condition without spots.

    5,application
    • Fluorescent light components
    • Electronic cathodes or anodes
    • Resistance thermometers
    6.Packing detail
    1) Coil (plastic spool) + compressed ply-wooden case + pallet
    2) Coil (plastic spool) + carton + pallet

    6)Shanghai Tankii Alloy Material Co., Ltd. is your best choice on nickel strip.
    If you need, pls be free to contact us. I am Martin Lee
