Hot Sales Ferro-Chrome-Aluminum Resistance Wire A1 1.4mm Used For Automotive Industry

1. Description
Ferro-chrome-aluminum resistance wire, also known as ferrochrome alumina wire or simply Fecral wire, is a type of resistance wire made from an alloy of iron, chromium, and aluminum.

The properties of FeCrAl alloy heating wire include high electrical resistivity, good oxidation resistance at high temperatures, and the ability to withstand high operating temperatures. These characteristics make them suitable for applications where stable and reliable heating is required under harsh conditions.

How does the composition of FeCrAl affect its properties?

The composition of FeCrAl alloy significantly affects its properties, making it suitable for various applications. Here's how the composition of FeCrAl alloy impacts its properties:

1. Chromium (Cr):

   • Oxidation Resistance: Chromium forms a protective oxide layer on the surface of the alloy when exposed to high temperatures. This layer helps prevent further oxidation and corrosion, enhancing the alloy's resistance to heat and making it suitable for high-temperature applications.

2. Aluminum (Al):

   • Oxidation Resistance: Aluminum also contributes to the formation of the protective oxide layer on the surface of the alloy, enhancing its resistance to oxidation at high temperatures.
   • Electrical Resistivity: Aluminum increases the electrical resistivity of the alloy, allowing it to generate heat efficiently when an electric current passes through.

3. Iron (Fe):

   • Mechanical Strength: Iron provides mechanical strength to the alloy, making it durable and able to withstand mechanical stresses during use.

4. Other Alloying Elements:

   • Nickel, Manganese, Silicon, etc.: Small amounts of these elements may be added to modify specific properties of the alloy, such as ductility, strength, or resistance to specific environmental conditions.

2.The range of Specification
1).Locomotive resistance strip:
Thickness:0.6mm-1.5mm
Width:60mm-90mm

2).Electric ceramic cooktop resistance strip:
Thickness:0.04mm-1.0mm
Width:5mm-12mm
Thickness&Width:(0.04mm-1.0mm)×12mm(above)

3).Low resistance ribbon:
Thickness&Width:(0.2mm-1.5mm)*5mm

4).Industrial furnace ribbon:
Thickness:1.5mm-3.0mm
Width:10mm-30mm

5).Wire: Diameter:0.05mm-10.0mm




3. Chemical Details of our Fe-Cr-Al alloy materials:

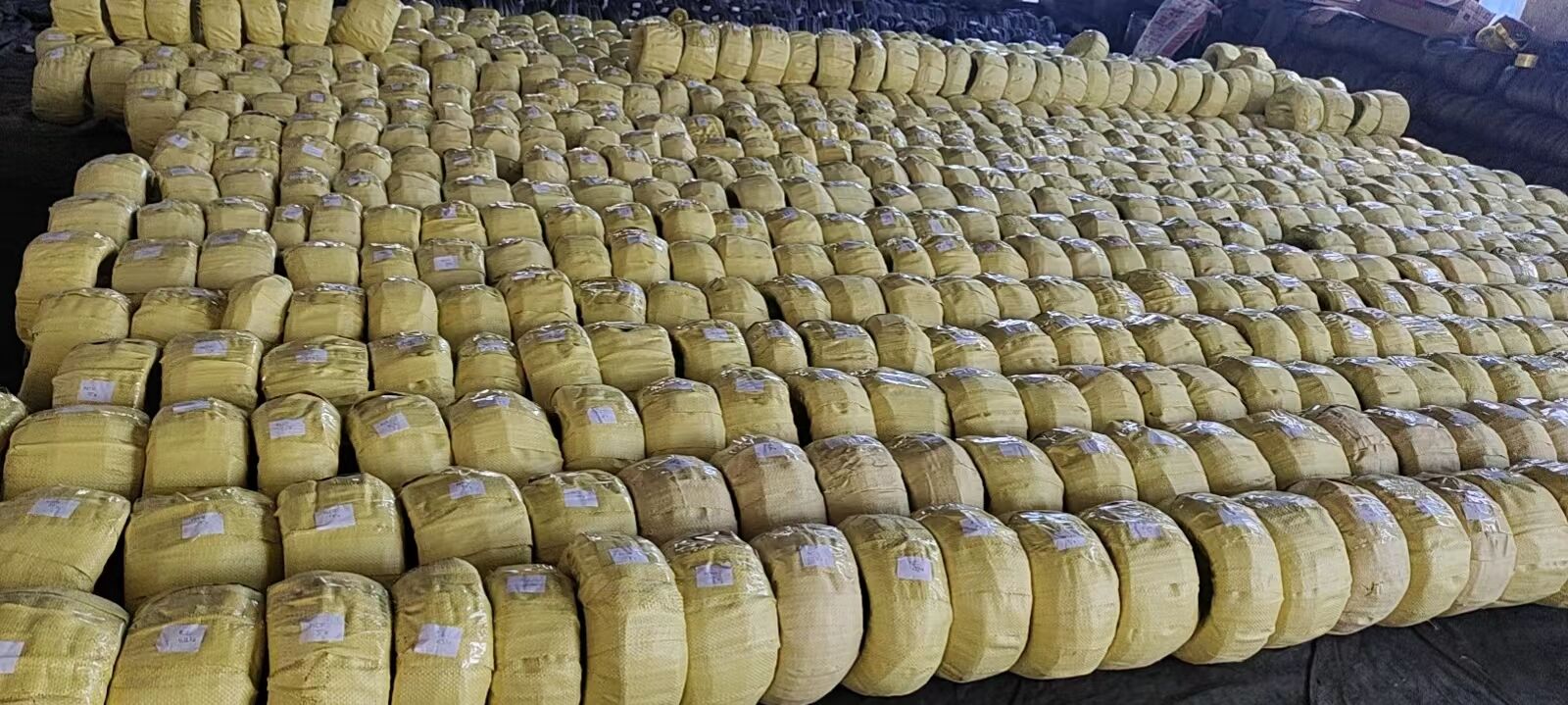

Package:

4. About us

Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Magnin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.

Welcome to call me or email to me for more information on our products.

Shanghai Tankii Alloy Material Co., Ltd.specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Manganin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.

We’ve already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system.

We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over forty years in this field. During forty years, hundreds of management elites and high science and technology talents were employed.They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market.

Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.

We are willing to establish strong and long-time partnership with our customers

• Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers
• Quality with end to end production control
• Technical support and Customer Service
